Products & Services
Incotec Products are developed with a key focus on enhancing the function of the fastening systems they are applied to. They are comprised of the highest quality materials available, and are rigorously tested to ensure consistent quality and performance.
Keeping up on the latest advances in specialty additives and technology, the Incotec R&D Department is constantly experimenting with new materials that can push the envelope in the areas of anti-corrosion, anti-galling, wear resistant, load carrying capacity, chemical resistance, conductive, and barrier protection.
ALUMI-TEC COATINGS
Incotec 8-G®
8-G was specifically designed to meet the requirements of BMS 10-85 & NAS 4006 without the addition of chromates. 8-G can be applied to internally and externally threaded products. 8-G establishes a very unique balance of low insertion force while maintaining strong topcoat adhesion properties. 8-G operating temperature ranges from -90º F to 500º F (-67º C to 260º C).
Incotec 9®
Various Colors: Silver, Pink, Green and Blue) for identification purposes. Adding the color identification to the coating saves capital and is a more effective method to dye ends. Incotec 9 operating temperature ranges from -90º F to 500º F (-67º C to 260º C).
Incotec 9 is qualified to BMS 10-85 & NAS 4006 for use on Titanium and CRES substrates. Its benefit over conventional aluminum coatings is that Incotec 9 is available in various colors.
Pro-tec
Pro-Tec is an aluminum-pigmented coating qualified to NAS 4006. Because of its high corrosion inhibiting properties, it outperforms traditional aluminum coatings in salt spray testing. Pro-Tec operating temperature ranges from -90° F to 500° F (-67° C to 260° C).
Incotec 9P®
9P is the first aluminum-pigmented coating qualified to Dassault Aviation, DGQT 1.8.0.0077 specification in 1994. It is also qualified to NAS 4006. 9P demonstrates extremely low installation force values and is more conductive than traditional aluminum coatings. 9P operating temperature ranges from -90º F to 500º F (-67º C to 260º C).
MOLY-TEC COATINGS
Tec-Lube
Tec-Lube is a dry-film lubricant to AS5272 Type I and Sikorsky SS8866. It provides exceptional wear life, load carrying capacity, and adhesion properties. On the Falex machine, Tec-Lube outperforms most leading aerospace equivalents and is the product of choice of many Leading Aerospace Manufacturers. Tec-Lube operating temperature ranges from -90º F to 500º F (-67º C to 260º C).
HTL
HTL is a water-based, hi-temp, dry-film lubricant qualified to AS1701 Class IV. This lubricant is capable of working up to 1400º F (760º C).
Tec-Forge
Tec-Forge is a water-based dry-film lubricant used as forging lube to prolong the life of dyes. Tec-Forge is currently being used in many fastener-manufacturing facilities around the world. It is a safe water-based lubricant; therefore it is environmentally friendly and easy to apply. Tec-Forge operating temperature ranges from -90º F to 1400º F (-67º C to 760º C).Â
Oxy-Lube E
Oxy-Lube E is a dry-film lubricant qualified to D6-3488, BAC5811, AS6449 & AS6450. It is designed for use on Oxygen, Potable Water and Hydraulic Fittings. Oxy-Lube E has an exclusive pigment-to-volume ratio that allows it to provide exceptional anti-galling properties, while maintaining effective corrosion barrier protection.
This unique ratio also gives it a distinct advantage against leading dry-film lubricants since coating transfer is minimal. Oxy-Lube E operating temperature ranges from -90º F to 600º F (-67 ºC to 315 ºC).
Multi-Kote
Utilizing a synergistic combination of PTFE and other proprietary advanced ingredients, Multi-Kote is a multiuse dry-film lubricant that provides extremely low friction properties at medium to low pressure applications where run cycles are needed in excess of 1K times. Multi-Kote operating temperature ranges from -90º F to 600º F (-67 ºC to 315 ºC).
CFL-23
CFL-23 was designed for use on internally threaded products or anywhere where achieving consistent friction across multiple re-use cycles is necessary. CFL-23 adds with it excellent topcoat adhesion and sealant peel properties. CFL-23 operating temperature ranges from -90º F to 600º F (-67 ºC to 315 ºC).Â
COLOR-TEC COATINGS
AMS-Std-595-Colors
Incotec offers AMS-Std-595-Color matched coatings that are available in a range of colors including red, green, blue, black, grey and yellow. All AMS-Std-595-Color coatings maintain excellent adhesion and corrosion properties. AMS-Std-595-Colors operating temperature ranges from -90º F to 600º F (-67 ºC to 315 ºC).
Incotec Gun-Kote (Various Colors)
Gun-Kote is a coating formulated for use on weapons systems and engine cylinders. Gun-Kote properties include: wear resistance, excellent cohesive tensile strength, and excellent aesthetics. Operating temperature ranges from -90º F to 600º F (-67 ºC to 315 ºC).Â
GASKET-TEC COATINGS

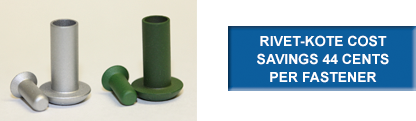

Rivet-Kote®
Applied to blind and solid Rivet bodies, tested by Leading Aerospace Companies, Rivet-Kote demonstrates the remarkable ability to act as a gasket to seal voids from offhand drilling. Rivet-Kote has proven to outperform wet-installation on all levels.
The benefits over wet-installation include: no environmental clean-up, lower costs of safety equipment, and lower labor costs. Rivet-Kote is available in two colors: green and silver, and both versions contain no chromates. Rivet-Kote operating temperature ranges from -90° F to 500° F (-67° C to 260° C).Â
